Doing Performance Analysis with One Page Views – Part 3 of 3 – EMC CX3-CLARiiONs

By | May 7, 2009

Performance Analysis of EMC CX3 CLARiiONs

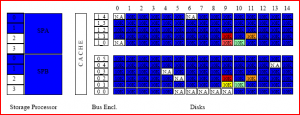

Continuing the discussion on doing performance analysis with simple one page views, here is a sample of what can be done with an EMC CLARiiON model CX3-600/700. This copyright view is based on the performance data that is collected by EMC Control Center (ECC) with Performance Manager (WorkLoad Analyzer – WLA) tool. The performance utilization are based on threshold values and shown on top of the EMC CLARiiON Configuration. All major critical components of the are shown with color legend shown on the bottom. The view shows the following component utilization:

– Front-end SP Fibre Ports

– Cache

– Back-end Bus, Fibre Disk Ports

– Raid Groups and their types

– Physical Disks, Disk Speed (RPM)

Performance Analysis
